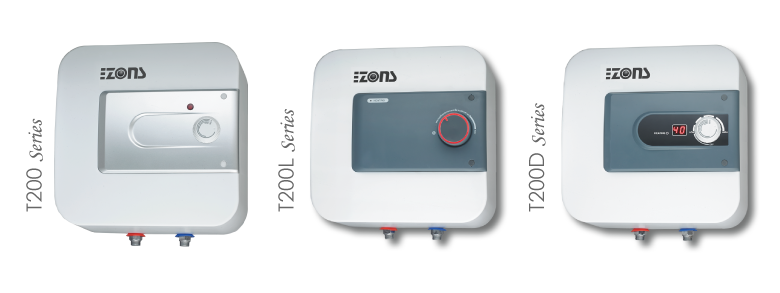

T200 series

Specifications & Features

    • Tank: Enamel
    • Heating Element: Stainless Steel 316/incoloy 840/incoloy 800/enamel
    • Rated Pressure: 0.70Mpa/0.75Mpa/0.80Mpa
    • Rank Waterproof: IPX4
    • Hot water temperature limit: 75oC
    • Temperature Range: 30~75oC

Options

    • ELCB: Electric Leakage Protection
Rated Power2500W
Power SelectionSingle Phase
Rated Input220V / 50Hz,60Hz

Product Size & Loading

ModelT210T215T230
Capacity (L)101530
Net Size (mm)335x335x270355x355x320435x435x365
Packing Size (mm)370x370x340390x390x395470x470x440
QTY/20’GP/40’GP/40’HQ574/1185/1379349/724/869302/599/692



Functions & Features
